✍ Built in type, for dental unit
✍ Compatible with EMS

Models available:

✍ UDS-N2 LED Scaler KIT
Scaler tips Kit for UDS-N2 LED (2pcs G1 & 1pc G2 & 1pc G4 & 1pc P1, totally 5pcs /kit )
✍ UDS-N3 LED Scaler KIT
Scaler tips Kit for UDS-N3 LED (2pcs G1T & 1pc G2T & 1pc G4T & 1pc P1T & 1pc E1T, totally 6pcs /kit)

Features:

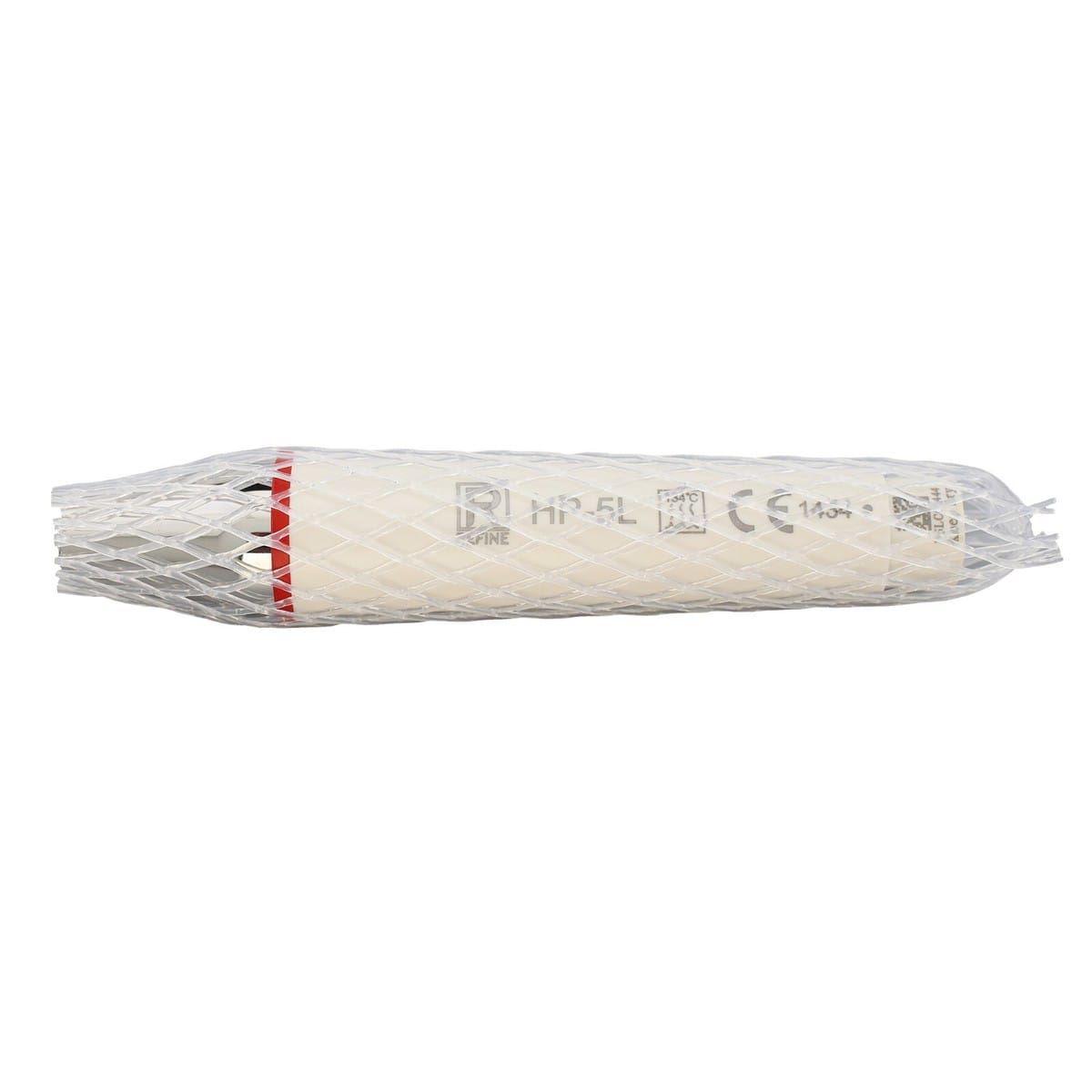

✍ Detachable handpiece HW-5L with light, 135 autoclavable.
✍ Automatic frequency tracking.
✍ Accurate feedback control and constant power put, ensure a more comfortable feeling to patients.
✍ Compatible with EMS Ultrasonic scaler
✍ UDS N3 LED has Endo Function
✍ UDS N2 LED DOES NOT HAVE Endo Function

Technical Details:

✍ Power input : Without transformer 24V~ 50Hz/60Hz 1.3A
✍ Output primary tip Vibration excursion: ≤100μm
✍ Output half-excursion force: <2N
✍ Output tip Vibration frequency: 28kHz±3kHz
✍ Output power: 3W to 20W
✍ Water pressure: 0.01MPa to 0.5MPa
✍ Weight of main unit: 0.2kg
✍ Weight of transformer: 1kg (optional)
✍ Dimensions:74mm×56mm×38mm
✍ Operating mode: Continuous operation
✍ Type of protection against electric shock: Class II
✍ Degree of protection against electric shock: Type BF applied part
✍ Degree of protection against harmful ingress of water: Ordinary equipment (IPX0)
✍ Degree of safety of application in the presence of a flammable anesthetic mixture with air or with oxygen or nitrous oxide:
✍ Equipment can not be used in the presence of a flammable anesthetic mixture with air or with oxygen or nitrous oxide
